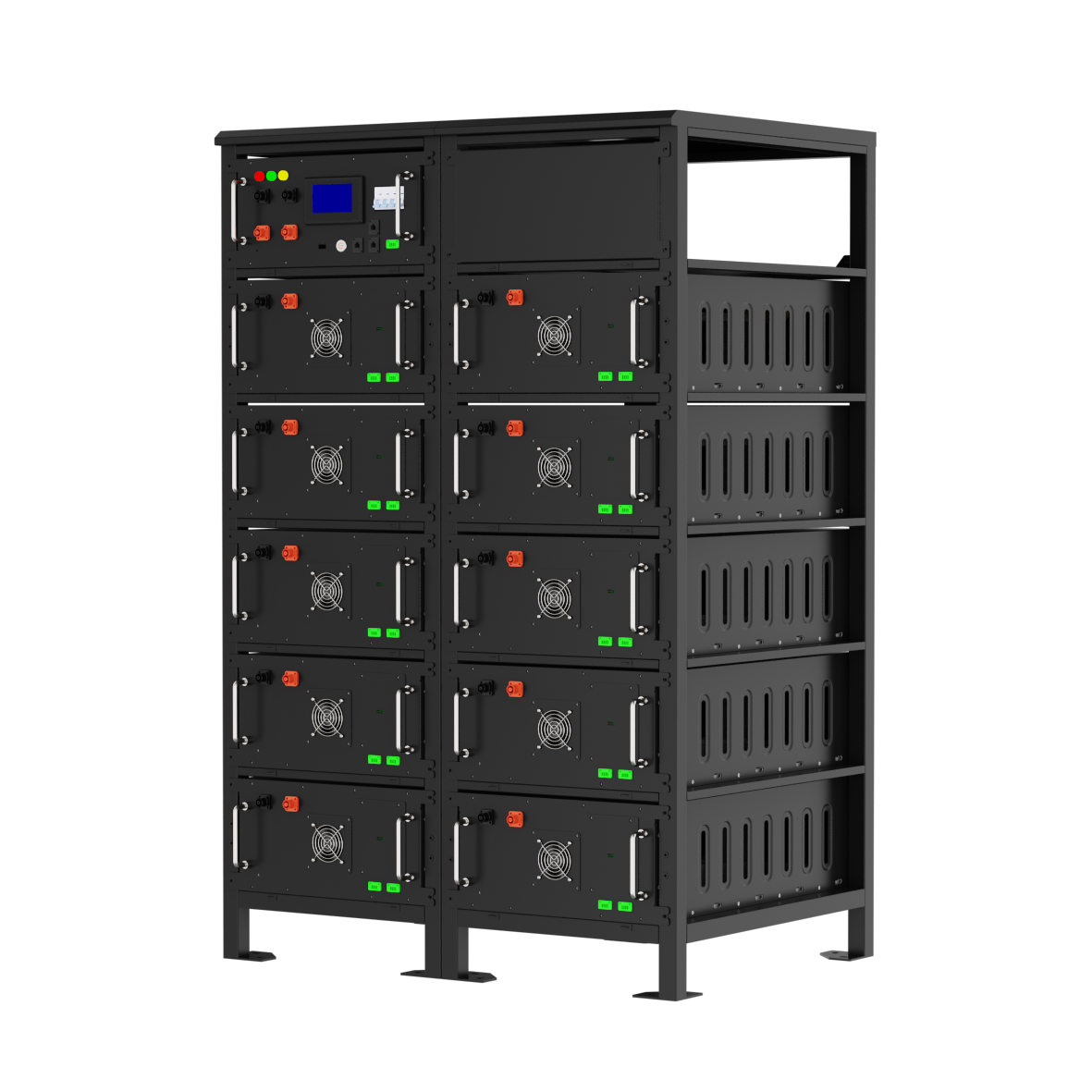

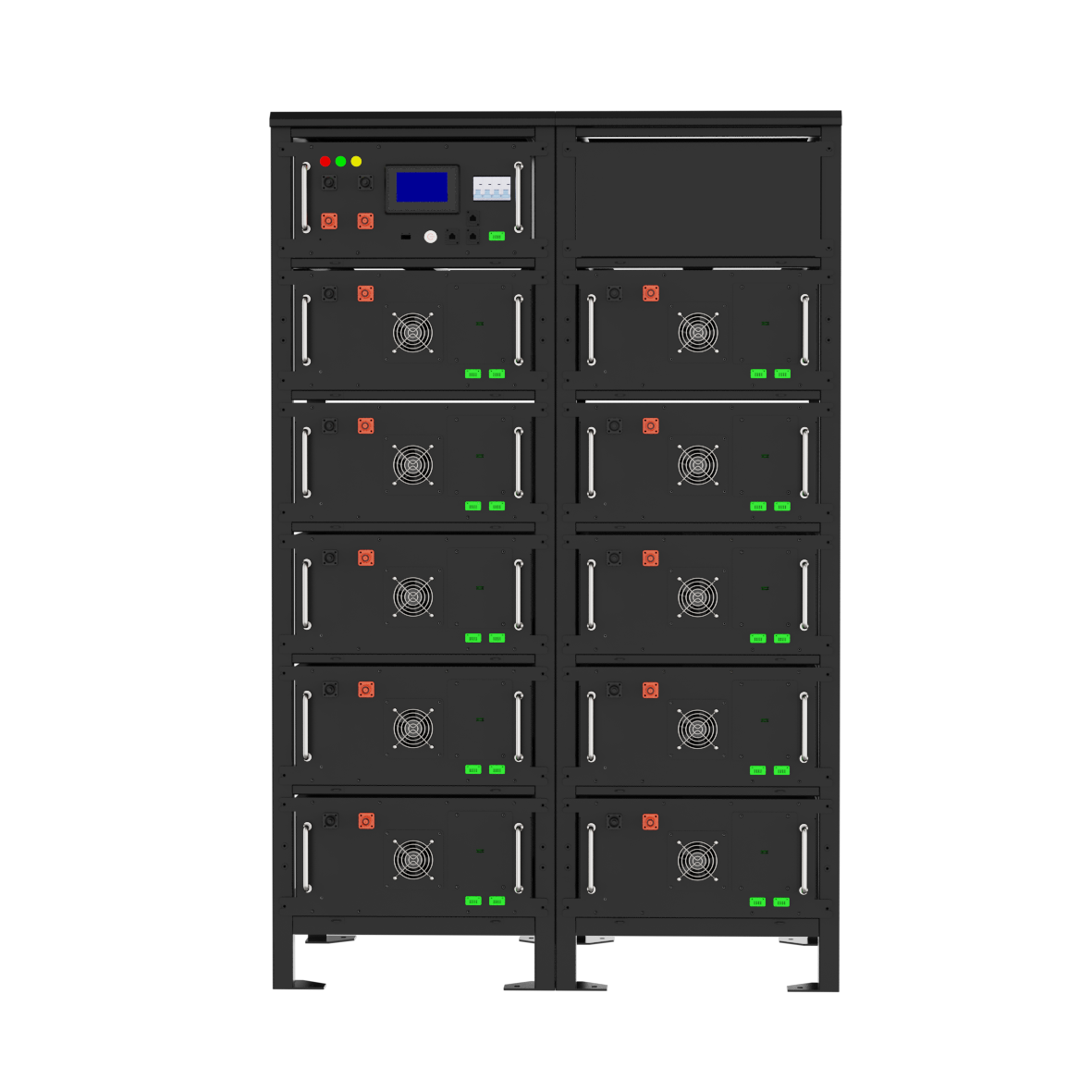

TH-64314-RH
5U high-voltage rack battery
Home energy storage
Industrial and commercial storage
Inverter series
UPS
Industrial and commercial storage
Home energy storage
Company News
Events
Downloads
Product warranty
FAQ
Support video
Contact Us
Product advantages
Quick-plug stacking
Minimalist installation and deployment: rack-mounted design with a simple structure, no complex wiring required, easy installation, and significantly reduced construction costs; Saves space and is suitable for installation in residential courtyards, small commercial and industrial computer rooms, and other scenarios.
High-voltage architecture design
Perfectly matched with three-phase hybrid inverters: high-voltage DC output, seamlessly connected to high-voltage inverters, perfectly suitable for residential/small commercial and industrial high-power loads, improving system conversion efficiency.
Modular design
Flexible Expansion: Standardized design for a single module of 16kWh, supporting free stacking of 4-15 modules, configurable on demand and seamless expansion later to meet energy storage needs at different stages.
Technical specifications
| MODEL | TH-64314-R4 | TH-64314-R5 | TH-64314-R6 |
|---|---|---|---|
| Nominal voltage | 256 | 320 | 384 |
| Cell mode/ Configuration | 3.2V314Ah /8051P | 3.2V314Ah /100S1P | 3.2V314Ah /120S1P |
| Capacity(Ah) | 314 | ||
| Rate energy(kWh) | 80.38 | 100.48 | 120.58 |
| Weight(Approx)(kg) | 574 | 708 | 841 |
| Dimension W*D*H(mm) | 550*937*1450 | 550*937*1700 | 550*937*1960 |
| Voltage range(Vdc) | 216~288 | 270~360 | 324~432 |
| MODEL | TH-64314-R7 | TH-64314-R8 | TH-64314-R9 |
| Nominal voltage | 448 | 512 | 576 |
| Cell mode/ Configuration | 3.2V314Ah /14051P | 3.2V314Ah /16051P | 3.2V314Ah /18051P |
| Capacity(Ah) | 314 | ||
| Rate energy(kWh) | 140.67 | 160.77 | 180.86 |
| Weight(Approx)(kg) | 975 | 1128 | 1242 |
| Dimension W*D*H(mm) | 550*937*2210 | 1100*937*1450 | 1100*937*1450 |
| Voltage range(Vdc) | 378~504 | 432~576 | 486~648 |
| MODEL | TH-64314-R10 | TH-64314-R11 | TH-64314-R12 |
| Nominal voltage | 640 | 704 | 768 |
| Cell mode/ Configuration | 3.2V314Ah /200S1P | 3.2V314Ah /22051P | 3.2V314Ah /24051P |
| Capacity(Ah) | 314 | ||
| Rate energy(kWh) | 200.96 | 221.06 | 241.15 |
| Weight(Approx)(kg) | 1395 | 1510 | 1662 |
| Dimension W*D*H(mm) | 1100*937*1710 | 1100*937*1710 | 1100*937*1960 |
| Voltage range(Vdc) | 540~720 | 594~792 | 648~864 |
| MODEL | TH-64314-R13 | ||
| Nominal voltage | 832 | ||
| Cell mode/ Configuration | 3.2V314Ah /26051P | ||
| Capacity(Ah) | |||
| Rate energy(kWh) | 261.25 | ||
| Weight(Approx)(kg) | 1780 | ||
| Dimension W*D*H(mm) | 1100*937*1960 | ||
| Voltage range(Vdc) | 702~936 | ||
| Max.charge/ discharge current(A) | 140 | ||
| Scalability | Up to 4 clusters in parallel | ||
| Communication | RS485(B)-BAT/RS485(A)-PC/Canbus-Inverter | ||
| Cycle life | 25±2℃,0.5C/0.5C,EOL70%≥6000 | ||
| Design life | ≥15 years(25℃) | ||
| Protection | BMS,Breaker | ||
| Operation temperature(℃) | Charge:0℃~50℃;Discharge:-20℃~50℃ | ||
| Altitude(m) | ≤2000 | ||
| Humidity | <95%(Non-condensing) | ||
| Certificates | UN38.3,MSDS,CE-EMC | ||
To learn more about energy storage solutions, please contact us!
