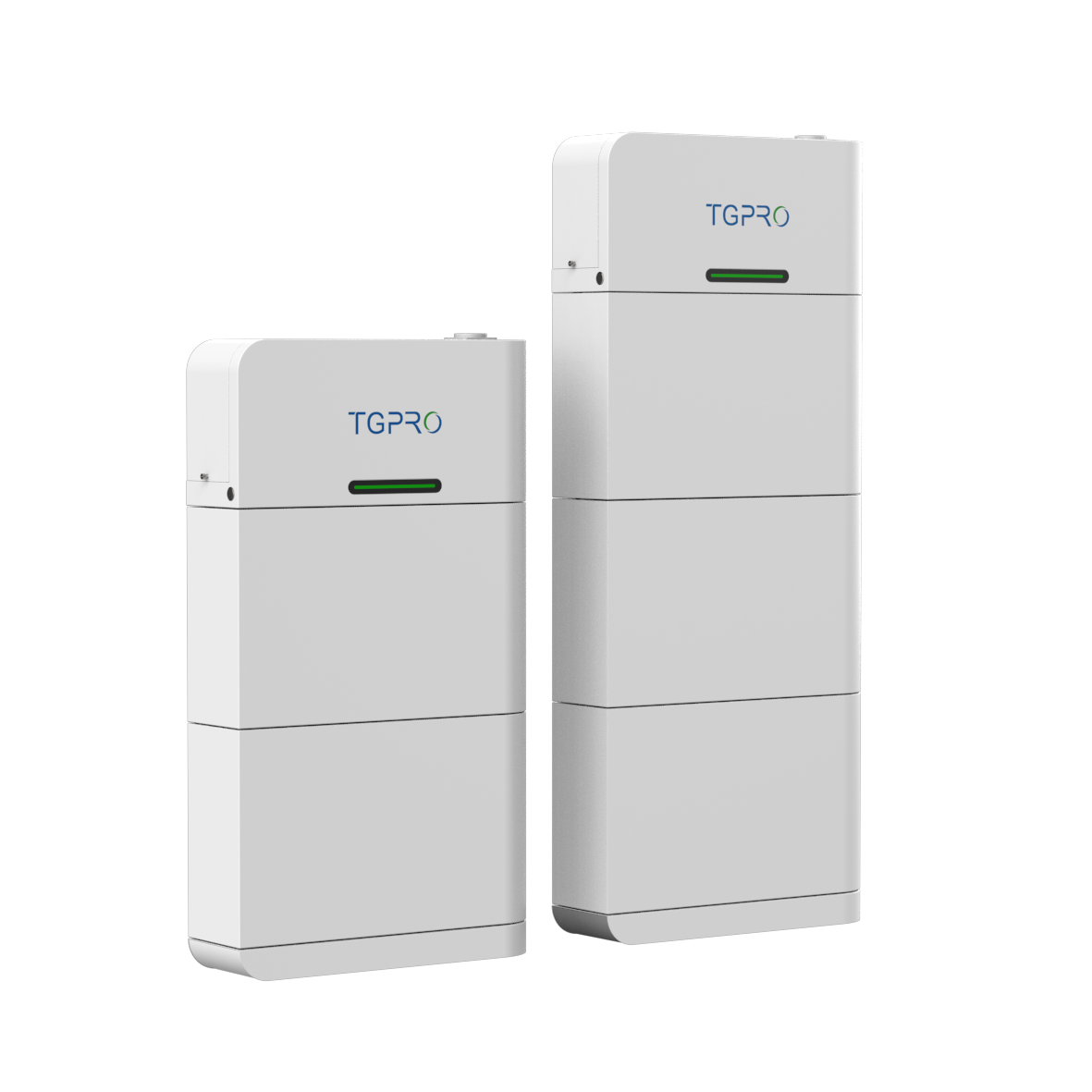

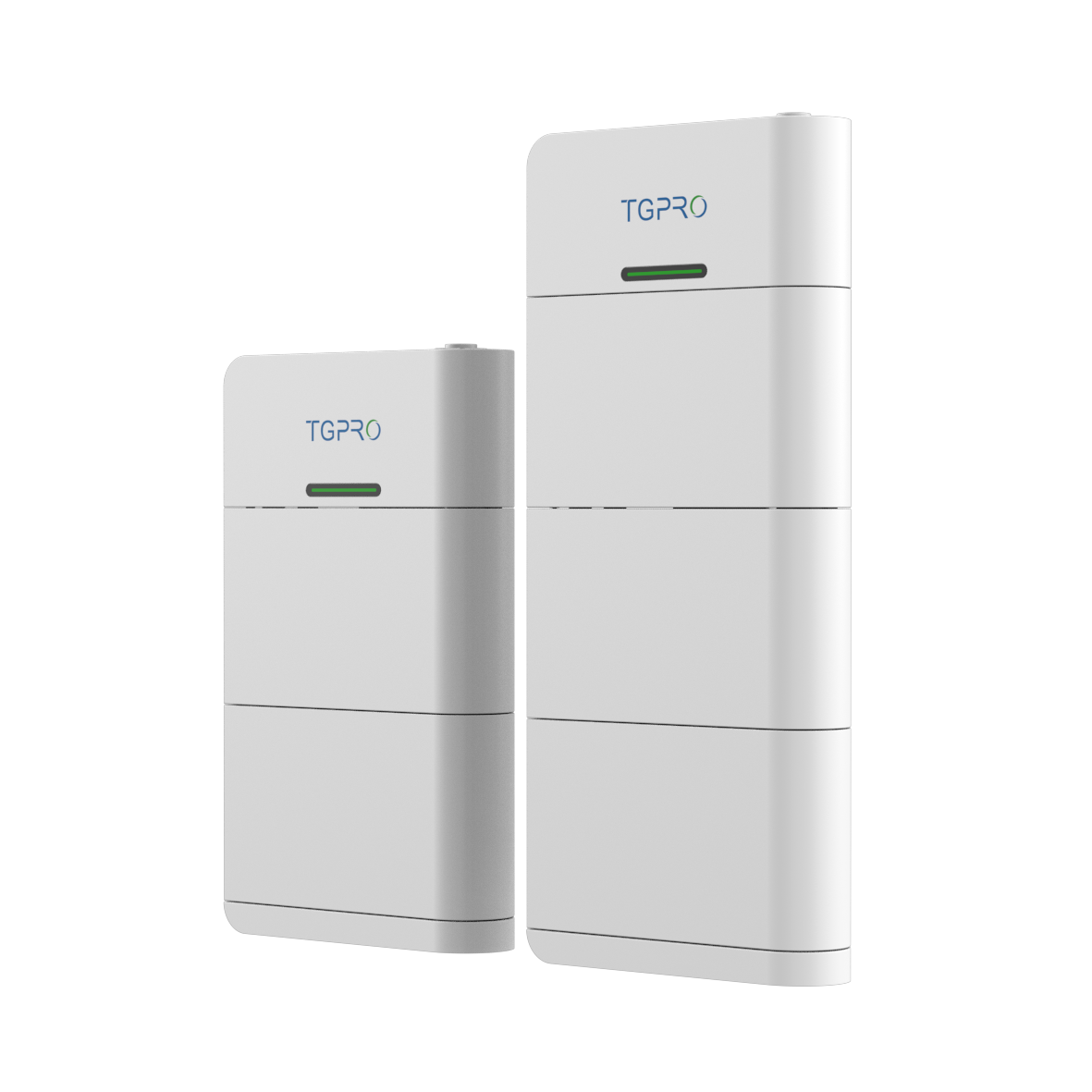

TG-SS-5HVS series
High-voltage stacked battery packs
Contact
Products Residential Energy Storage Series
Product advantages
Strong scalability
You can freely choose between 9.6~19.2kWh of power
Stacked design
Wireless connectivity is easy to install
IP65 design
Suitable for outdoor use
Supports diesel and electricity connection
Meeting diverse energy needs
Technical specifications
MODELTG-SS-HV2TG-SS-HV3
Rate voltage(Vdc)192288
Cell combination(S1P)3051P*2S3051P*3S
Energy storage(KWH)9.614.4
Discharge cut-off voltage(VDC)162243
Charge cut-off voltage(VDC)216324
Product dimension L*W*H(mm)680*185*1035680*185*1425
Package dimension L*W*H(mm)780*295*450*3780*295*450*4
Net weight(kg)14+49*214+49*3
Gross weight(kg)21+53*221+53*3
MODELTG-SS-HV4TG-SS-HV5
Rate voltage(Vdc)384480
Cell combination(S1P)3051P*4S3051P*5S
Energy storage(KWH)19.224
Discharge cut-off voltage(VDC)324405
Charge cut-off voltage(VDC)432540
Product dimension L*W*H(mm)680*185*1815680*185*2205
Package dimension L*W*H(mm)780*295*450*5780*295*450*6
Net weight(kg)14+49*414+49*5
Gross weight(kg)21+53*421+53*5
Rate capacity(AH)50
Cycle life25±2℃,0.5C/0.5C, EOL70%≥6000
Max. charge current(A)50
Max.discharge current(A)50
Charge temperature0°℃~50℃@60±25% Relative Humidity
Discharge temperature-20℃~50℃@60±25% Relative Humidity
Storage temperature-40℃~50℃@60±25% Relative Humidity
IP classIP65
Material systemLiFePO4
Case materialMetal
Case typeStand Stack
Protocol(Optional)CAN/RS485
MonitoringBluetooth/WLAN Optional
CertificatesUN38.3, MSDS, CE-EMC, IEC62619,63056
