TG-ESS-9HV-S(1～2)

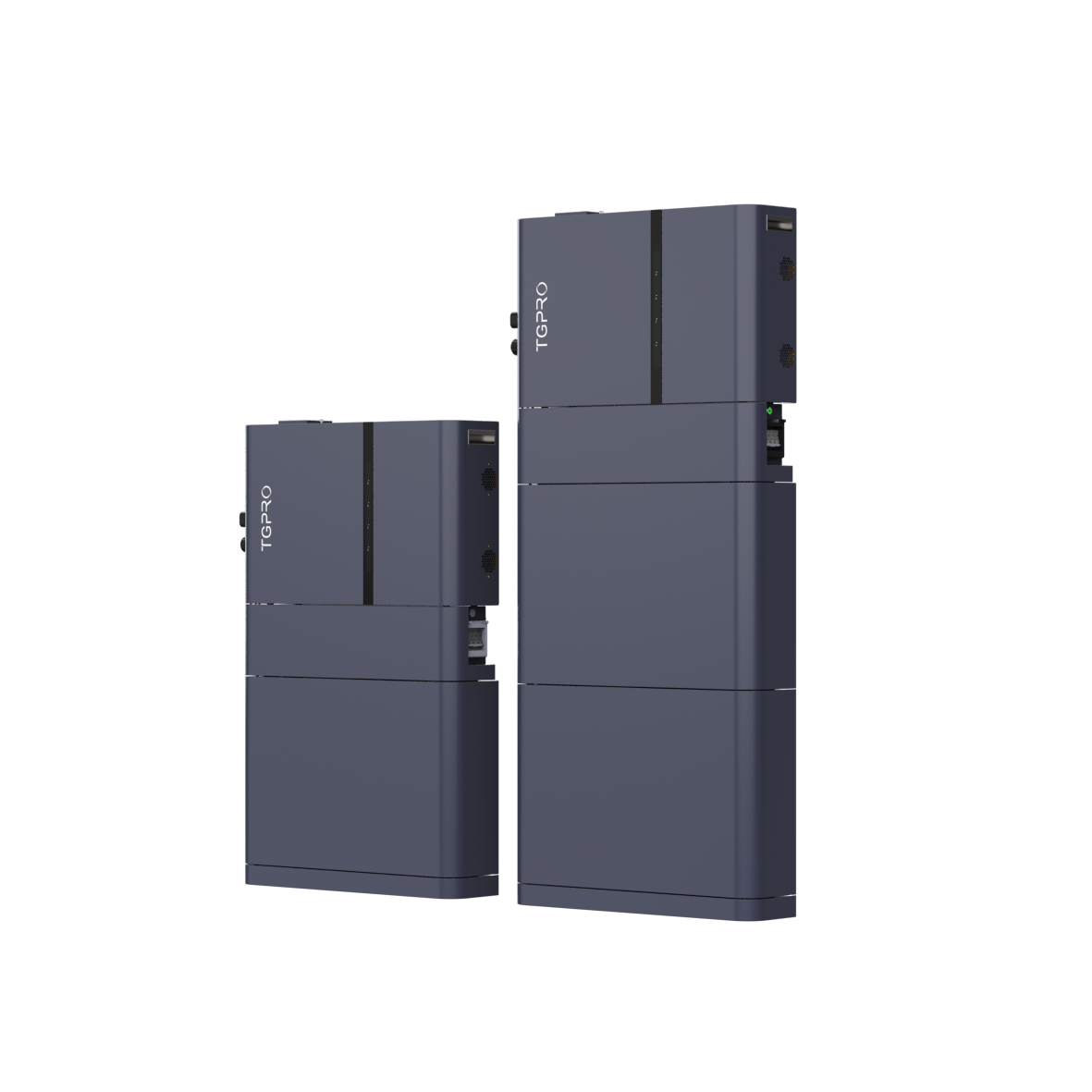

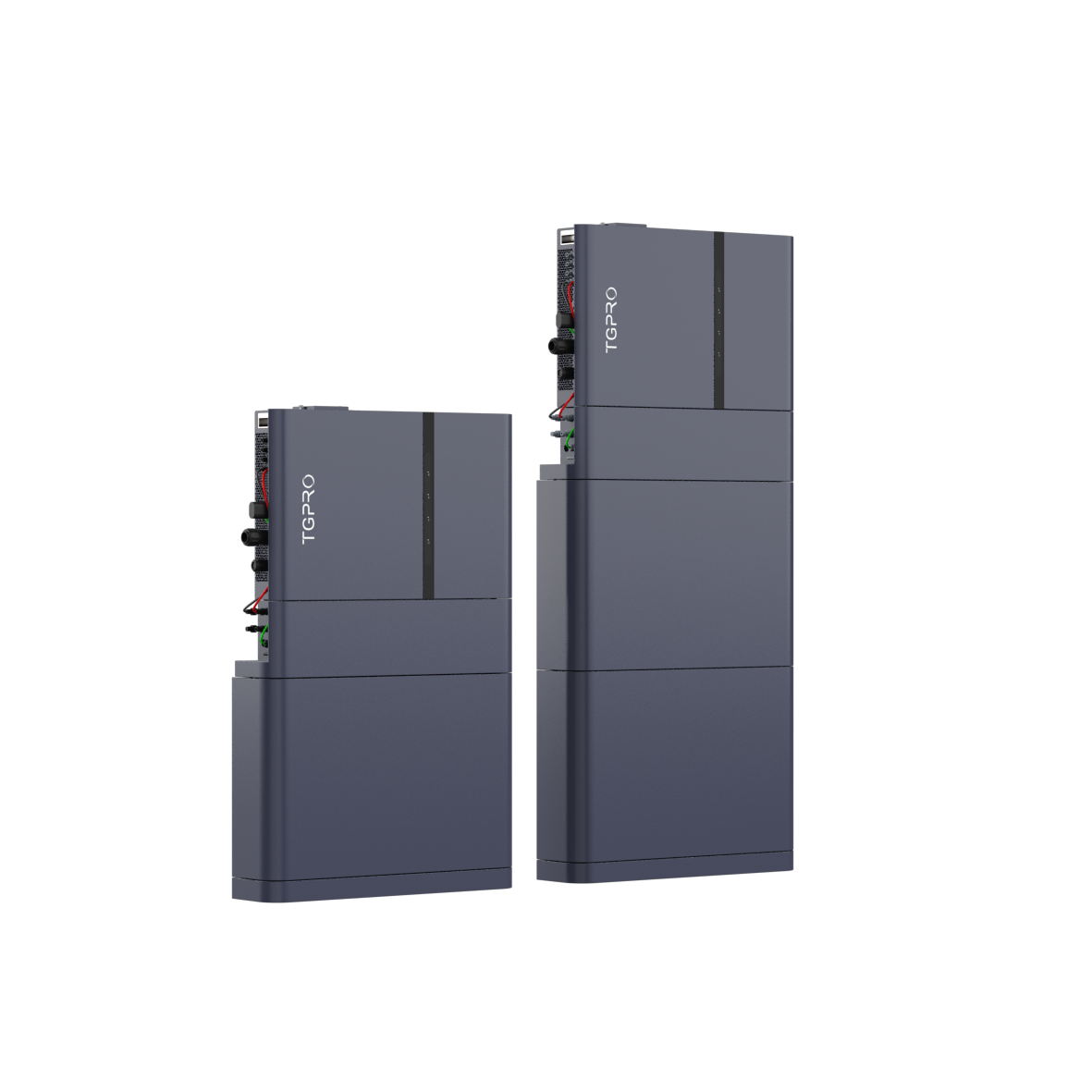

Three-phase high-voltage stacking integrated machine (Offline connection)

Contact

Products Residential Energy Storage Series

Product advantages

Supports diesel and electricity connection

Meeting diverse energy needs

Modular design

You can freely choose between 9.6~19.2kWh power and pair it with an 8-12kW hybrid inverter module

IP65 design

Meets outdoor usage conditions

Integrated stackable design

Batteries and inverters are 100% compatible, making system operation more reliable

Technical specifications

MODEL	TG-ESS-9HV-S1	TG-ESS-9HV-S2
PV Specifications
Max.PV Input Power	15000W
Nominal DC Voltage/Voc	600Voc
Start-up/Min.Operation Voltage	180Vdc
MPPT Voltage Range	150-950Vdc
No.Of MPPTs/Strings	2(1/2)
Max.PV Input Current	48A(16A+32A)
INPUT/OUTPUT(AC)
Max.AC Input Power From Grid	20500VA
Rated AC Output Power	10000W
Max.AC Output Apparent Power	11000VA
Rated/Max.AC Output Current	15.2A/16.7A
Rated AC Voltage	3/N/PE 220V/380V 230V/400V 240V/415V
AC Voltage Range	270-480V
Rated Grid Frequency	50Hz/60Hz
Grid Frequency Range	45~55Hz/55-65Hz
Harmonic(THD)(Of Rated Power)	<3%
Power Factor At Rated Power	>0.99
Adjustable Power Factor	0.8leading.…0.8lagging…
AC Type	Three phase
BATTERY DATA
Rate Voltage(Vdc)	192	384
Cell combination	6051P*1	60S1P*2
Rate Capacity(Ah)	50
Energy Storage(kWh)	9.6	19.2
Cycle life	25±2℃,0.5C/0.5C,EOL70%≥6000
Max.Charge/Discharge Current(A)	30
Discharge Cut-off Voltage(VDC)	162	324
Charge Cut-off Voltage(VDC)	216	432
ENVIRONMENT
Charge temperature	0°℃~55℃@60±25%Relative Humidity
Discharge temperature	-20℃~55℃@60±25%Relative Humidity
Storage temperature	-20℃~50℃@60±25%Relative Humidity
MECHANICAL
IP Class	IP65
Material System	LiFePO4
Case Material	Metal
Case Type	All In One Stack
Product Dimension LWH(mm)	Inverter high-voltage box:800210775/Battery box:800188512(single)
Package Dimension LWH(mm)	Inverter high-voltage box:1115300880 Battery box:920310735(single) (Packaging size Including accessories)	Inverter high-voltage box:1115300880 Battery box:920310735(single)*2 (Packaging size Including accessories)
Net weight(kg)	Inverter high-voltage box:65kg Battery box:95kg Accessory box:9kg	Inverter high-voltage box:65kg Battery box:95kg*2 Accessory box:9kg
Gross weight(kg)	Inverter high-voltage box:76kg(Including accessories)/Battery box:105kg
COMMUNICATION
Protocol(Optional)	RS485/RS232/WLAN Optional
CERTIFICATES
	EN,IEC,NRS,G99,UN38 3,MSDS,CE
