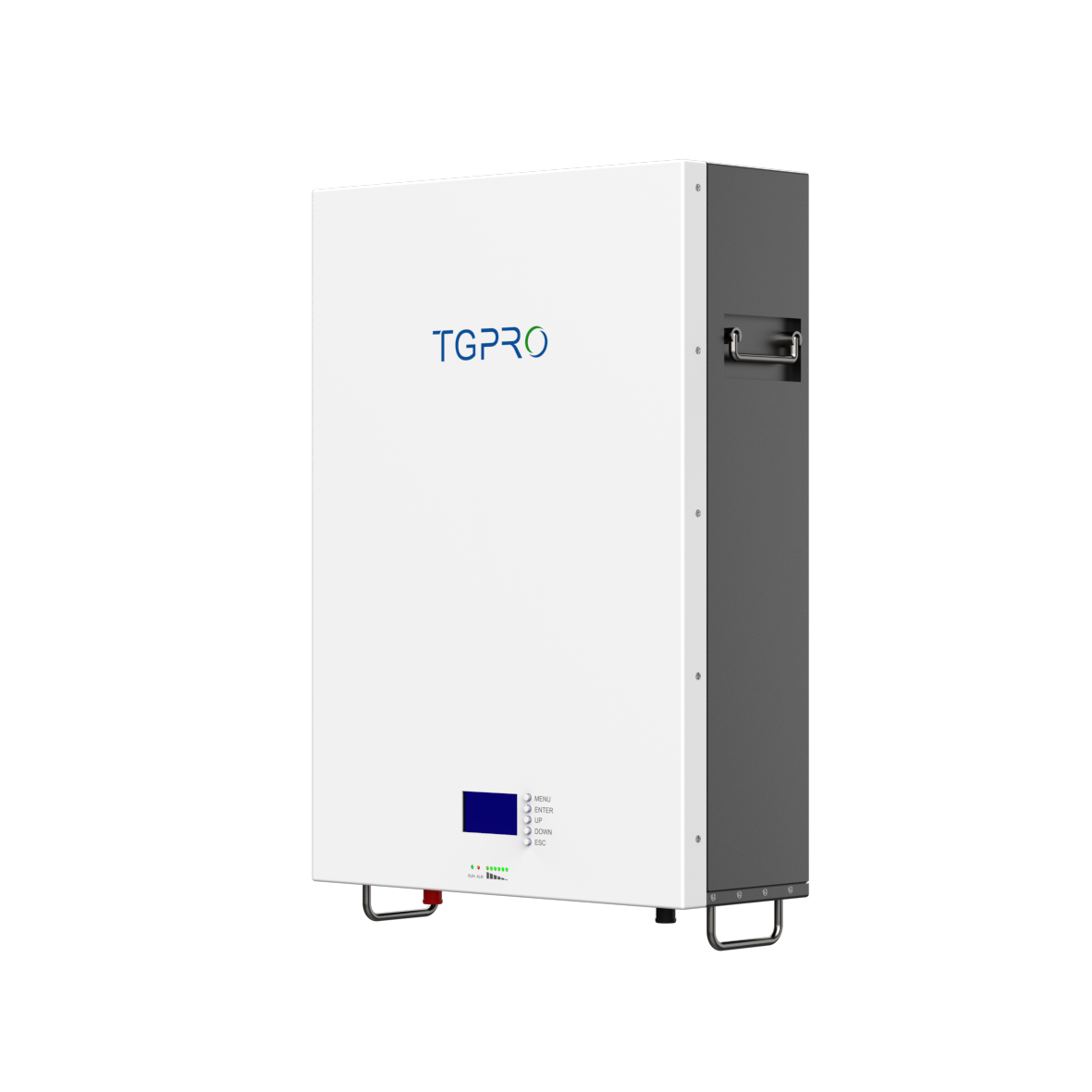

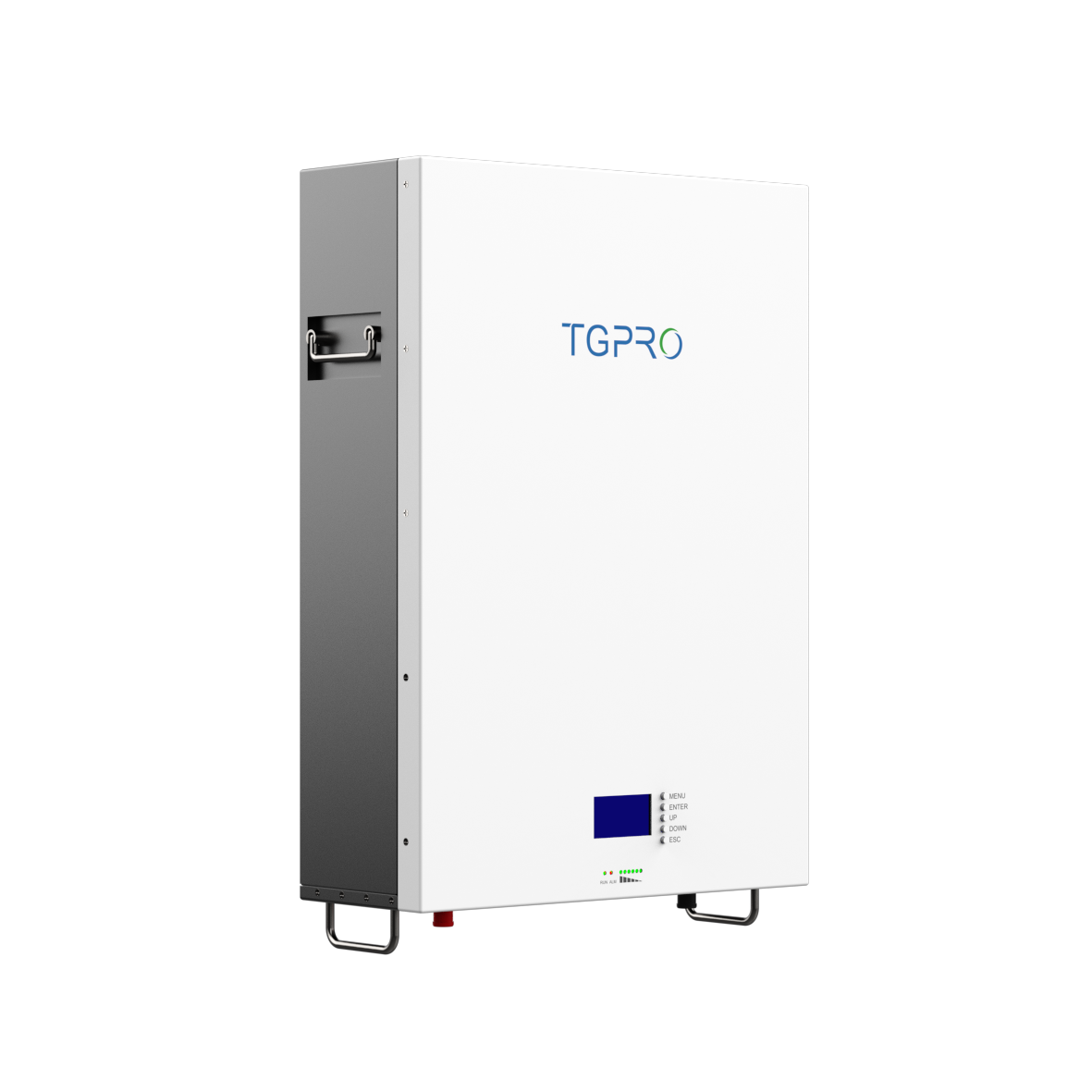

TH-48200/51200-W
Wall-mounted low-voltage battery pack
Contact
Products Residential Energy Storage Series
Product advantages
Home backup power supply
Respond to sudden power outages, ensure the normal operation of household appliances such as refrigerators, lighting, and routers, and solve temporary power outages.
Home energy storage facilities
When used with photovoltaic panels, it stores excess electricity, enables staggered usage, saves on electricity costs, and unlocks household energy freedom.
Small commercial scenarios
Suitable for convenience stores, small studios, etc., serving as a backup power source to avoid operational losses caused by power outages, compact and space-free.
Remote / outdoor scenes
Suitable for rural and mountainous areas with unstable power grids, as well as temporary outdoor power supply needs, easy to install without complicated wiring.
Technical specifications
ModelTH-48200-WTH-51200-W
Rated Voltage (Vdc)4851.2
Cell Configuration15S2P16S2P
Rated Capacity (AH)200200
Rated Energy (KWH)9.610.24
Cycle Times25±2℃,0.5C/0.5C,EOL70%≥6000
Maximum Charge Current (A)100A
Maximum Discharge Current (A)100A
Discharge Cut-off Voltage (VDC)40.543.2
Charge Cut-off Voltage (VDC)5457.6
Charging Temperature0℃~50℃
Discharging Temperature-20℃~50℃
Storage Temperature-20℃~50℃@60±25% relative humidity
IP RatingIP20
Cathode MaterialLithium Iron Phosphate
Enclosure MaterialMetal
Enclosure StyleWall-mounted
Product Dimensions Height*Length*Width (mm)690*485*226690*485*226
Packaging Dimensions Height*Length*Width (mm)850*570*285850*570*285
Net Weight (kg)8588
Gross Weight (kg)9598
Protocol (Optional)CAN/RS485/RS232
MonitoringBluetooth/WLAN Option
CertificationUN38.3, MSDS, CE-EMC, IEC62619, UL1973UN38.3,MSDS, CE-EMC
To learn more about energy storage solutions, please contact us!
